Spare parts

Repair your toys
// you are here: Home / Spare parts

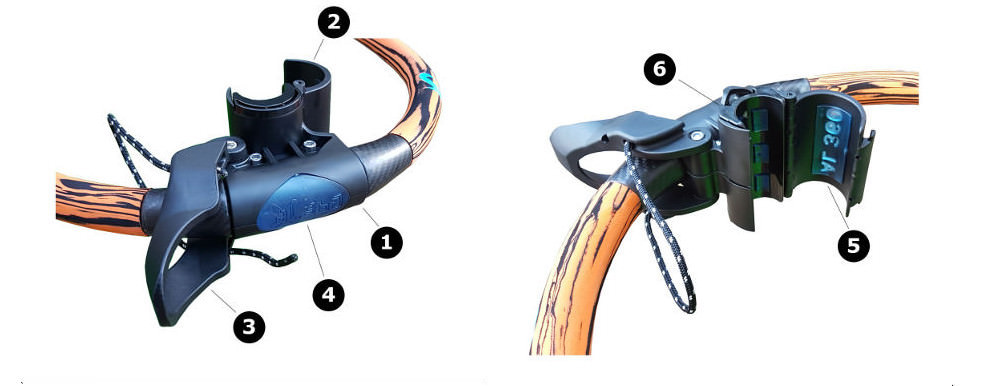

Boom front end

Spare parts

    Alu mono Ergal mono 140-150 Ergal mono 160-190 E3 carbon E3 slim Slalom RTE Race
1 Body frontend BDFE01 BDFE01 BDFE01 BDFE01 BDFE01 BDFE01 BDFE01 BDFE01
2 Locking hinge LH02 LH02 LH02 LH02 LH02 LH02 LH02 LH02
3 Front end lever FEL03 FEL03 FEL03 FEL03 FEL03 FEL03 FEL03 FEL03
4 Rubber logo RBL04 RBL04 RBL04 RBL04 RBL04 RBL04 RBL04 RBL04
5 Rubber hinge RBH05 RBH05 RBH05 RBH05 RBH05 RBH05 RBH05 RBH05
6 RDM adapter RDMA RDMA RDMA RDMA RDMA RDMA RDMA RDMA

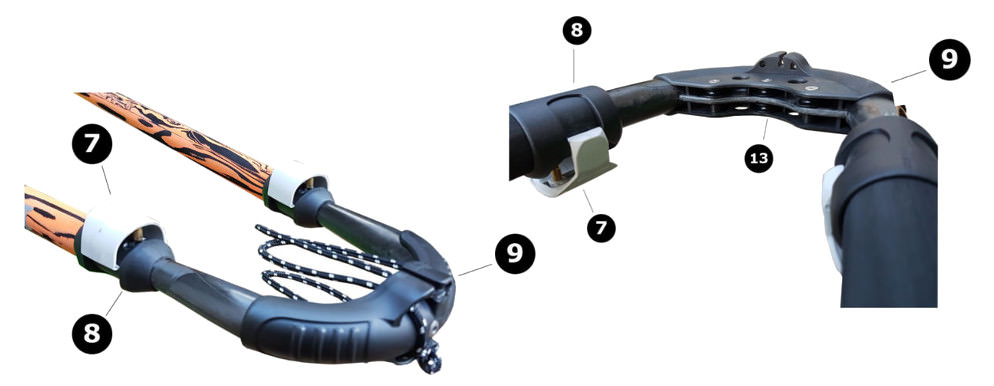

Tails

Spare parts

    Alu mono Ergal mono 140-150 Ergal mono 160-190 E3 carbon E3 slim Slalom RTE Race
7  White clip pullpin WC07W WC07W WC07W WC07W WC07S WC07SL WC07SL WC07SL
8 Black body pullpin BB08A BB08E28 BB08E BB08C BB08S BB08SL BB08SL BB08SL
9 Trim lock TRL09 TRL09 TRL09 TRL09 TRL09 TRL09SL TRL09SL TRL09SL
13 Set pulley           SPL13 SPL13 SP13

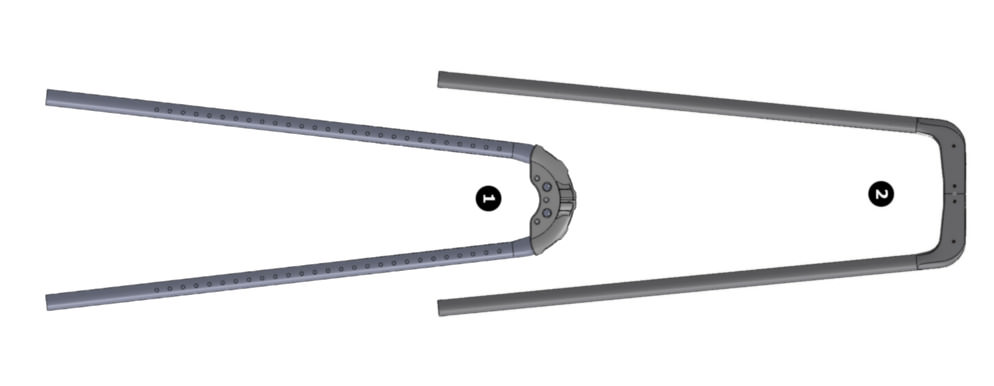

Code
1  Standard slalom tail TL12SL
2 Wide tail WTL02
3 Boom + wide tail * B+WTL03

* All booms are supplied with standard tail. On request you can have the boom with wide tail, paying only the cost difference from the standard one.

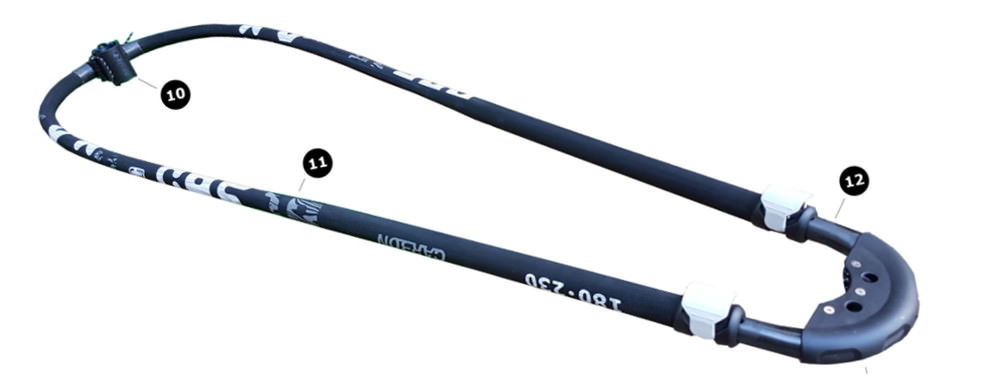

Boom main parts (wave - freestyle)

Spare parts

    Alu mono Ergal mono 140-150 Ergal mono 160-190 E3 carbon E3 slim
10 Complete frontend CFE10 CFE10 CFE10 CFE10 CFE10
11 Body of boom BDB11A BDB11E BDB11E BDB11C BDB11S
12 Tail TL12A TL12E28 TL12A TL12C TL12S

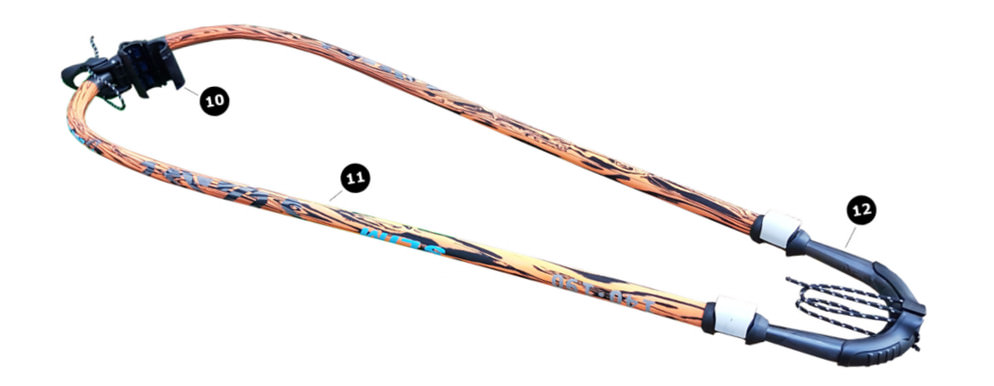

Boom main parts (slalom)

Spare parts

    Slalom RTE Race
10 Complete frontend CFE10 CFE10 CFE10
11 Body of boom BDB11SL BDB11ERTE BDB11RC
12 Tail TL12SL TL12RTE TL12SL

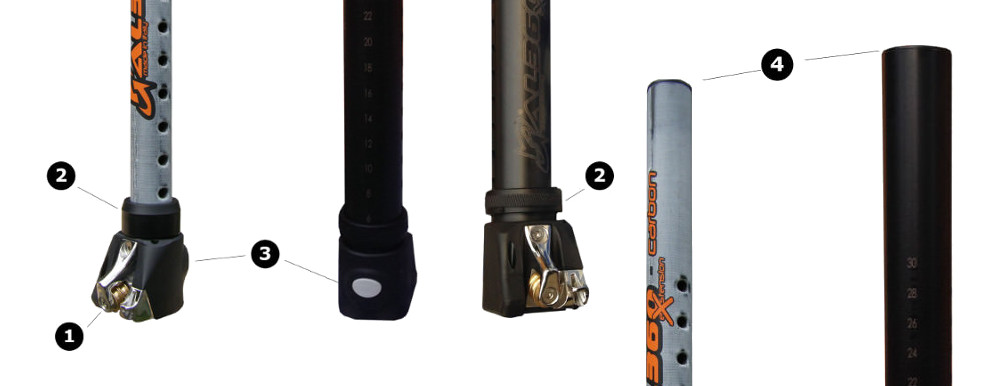

Mast extensions

Spare parts

    RDM SDM
1  Complete square pulley SQP01 SQP01
2 Adjustment collar ADJCO2R ADJCO2S
3 Xte plug XTP03 XTP03
4 Top plug TP04 TP04

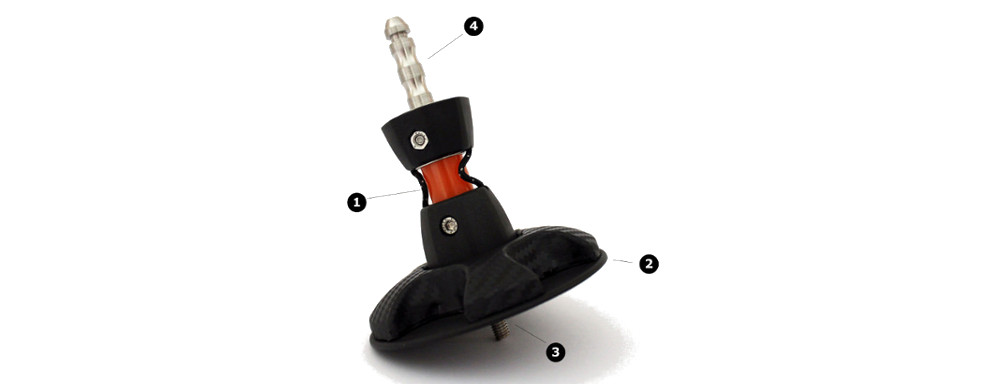

Mast base euro pin

Spare parts

    Code
1 Tendon TE01
2 Plastic plate PP02
3 Square locking nut LN03
4 Monoblock euro pin EPIN04
