Compact Sphere Nozzles
High-precision coolant delivery for advanced CNC machining.
CODE: 7305 - 7306
Technical Details
- Max Pressure: 15Bar
- Max Temperature: 80°C
- USE: With compressed air, Oil, water-oil emulsions.
- RIGIDITY: High even in the presence of chips
Description
Compact Sphere Nozzles are produced in 2 versions and in 5 sizes for each version. The data are shown in the table below. 7305: its main application is on fixed and rotating tool holders, also as a spare part, and on CNC machine spindles. 7306: applications on all machine tools, marble processing machines, die casting machines, and washing systems. Both are used in all applications where high rigidity, compact size and ease of orientation are required.
Downloads

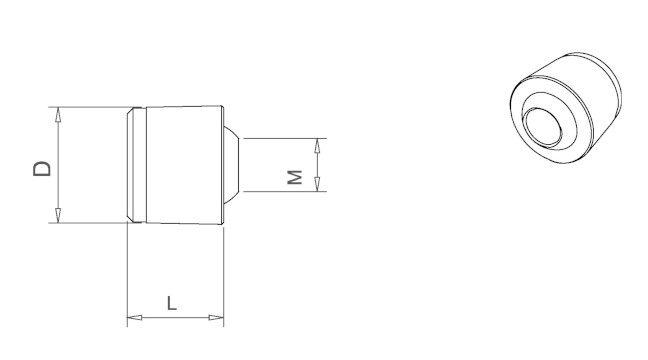

Available Sizes: 7305
| Code. | D | L | M | Description |
|---|---|---|---|---|
| 7305/6 | 6 mm | 5 mm | 2.5 mm | Pack 10 nozzles diameter 6 |
| 7305/8 | 8 mm | 6 mm | M4 | Pack 10 nozzles diameter 8 |
| 7305/10 | 10 mm | 7 mm | M5 | Pack 10 nozzles diameter 10 |
| 7305/12 | 12 mm | 8 mm | M6 | Pack 10 nozzles diameter 12 |
| 7305/14 | 10 mm | 7 mm | M8 | Pack 10 nozzles diameter 14 |
| 7305/16 | 16 mm | 10 mm | M10 | Pack 10 nozzles diameter 16 |

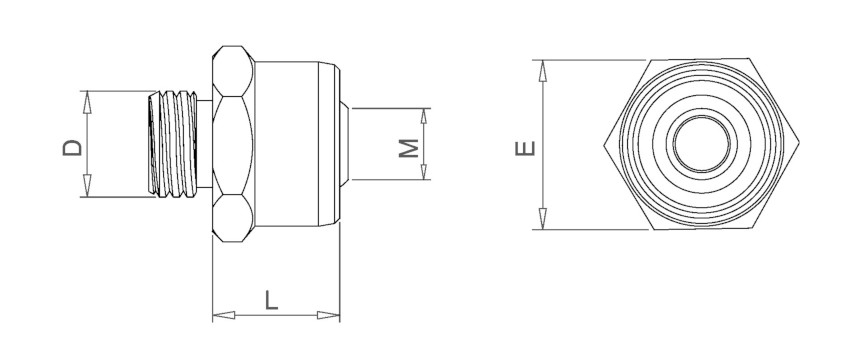

Available Sizes: 7306
| Code. | M | L | D | E | Description |
|---|---|---|---|---|---|
| 7306/4 | M4 | 9 mm | M6 | 11 | Pack 10 nozzles fitting M6 |
| 7306/5 | M5 | 12 mm | 1/8 | 14 | Pack 10 nozzles fitting 1/8 |
| 7306/6 | M6 | 13 mm | 1/8 | 16 | Pack 10 nozzles fitting 1/8 |
| 7306/8 | M8 | 14 mm | 1/4 | 18 | Pack 10 nozzles fitting 1/4 |
| 7306/10 | M10 | 16 mm | 3/8 | 20 | Pack 10 nozzles fitting 3/8 |
