Orbital Hight pressure Sphere Nozzles
High-precision coolant delivery for advanced CNC machining.
CODE: 7310
Technical Details
- Max Pressure: 80Bar
- Max Temperature: 80°C
- USE: With compressed air, Oil, water-oil emulsions.
- RIGIDITY: High even in the presence of chips
- ADJUSTMENT ANGLE: From 3° to 84°
Description
Orbital 7310 not only withstands very high pressures (80 bar) with extremely high rigidity, but can also be easily adjusted from 3° to 84°, solving any problems relating to the supply of coolant in very confined spaces. It is used on all machine tools, marble processing machines, die casting machines, washing systems, etc.
Downloads

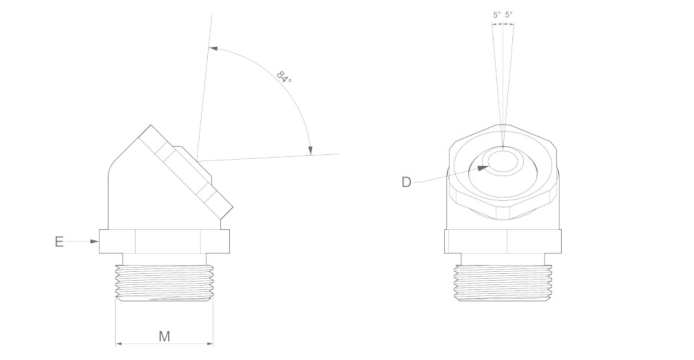

Available Sizes
| Code. | D | E | M | H | Description |
|---|---|---|---|---|---|
| 7310/3 | M3 | 15 | 1/8 | 19 | Pack 4 nozzles Hight pressure |
| 7310/5 | M5 | 17 | 1/4 | 21 | Pack 4 nozzles Hight pressure |
| 7310/6 | M6 | 19 | 3/8 | 23 | Pack 4 nozzles Hight pressure |
| 7310/8 | M8 | 22 | 3/8 | 27 | Pack 4 nozzles Hight pressure |
