Extensions

High-precision coolant delivery for advanced CNC machining.

CODE: 7308 - 7309 - 7310/45

Technical Details

  • Material: Brass
  • Max Temperature: 80°C
  • USE: With compressed air, Oil, water-oil emulsions.
  • DURABILITY: High even in the presence of chips or abrasive powders.

Description

Brass extensions, compatible with items 7305-7306-7307-7310-7319. Available in three versions to meet every need. 7308 - Extensions with various diameters and holes for precise jet control. 7309 - extensions with flat jet. 7310/45 - extensions with 45° angled hole for greater outlet angles.

Downloads

file_download 2D Model 7308 (DXF) file_download 3D Model 7308 (STEP) file_download 2D Model 7309 (DXF) file_download 3D Model 7309 (STEP) file_download 2D Model 7310/45 (DXF) file_download 3D Model 7310/45 (STEP) menu_book Download Full Catalog (PDF)

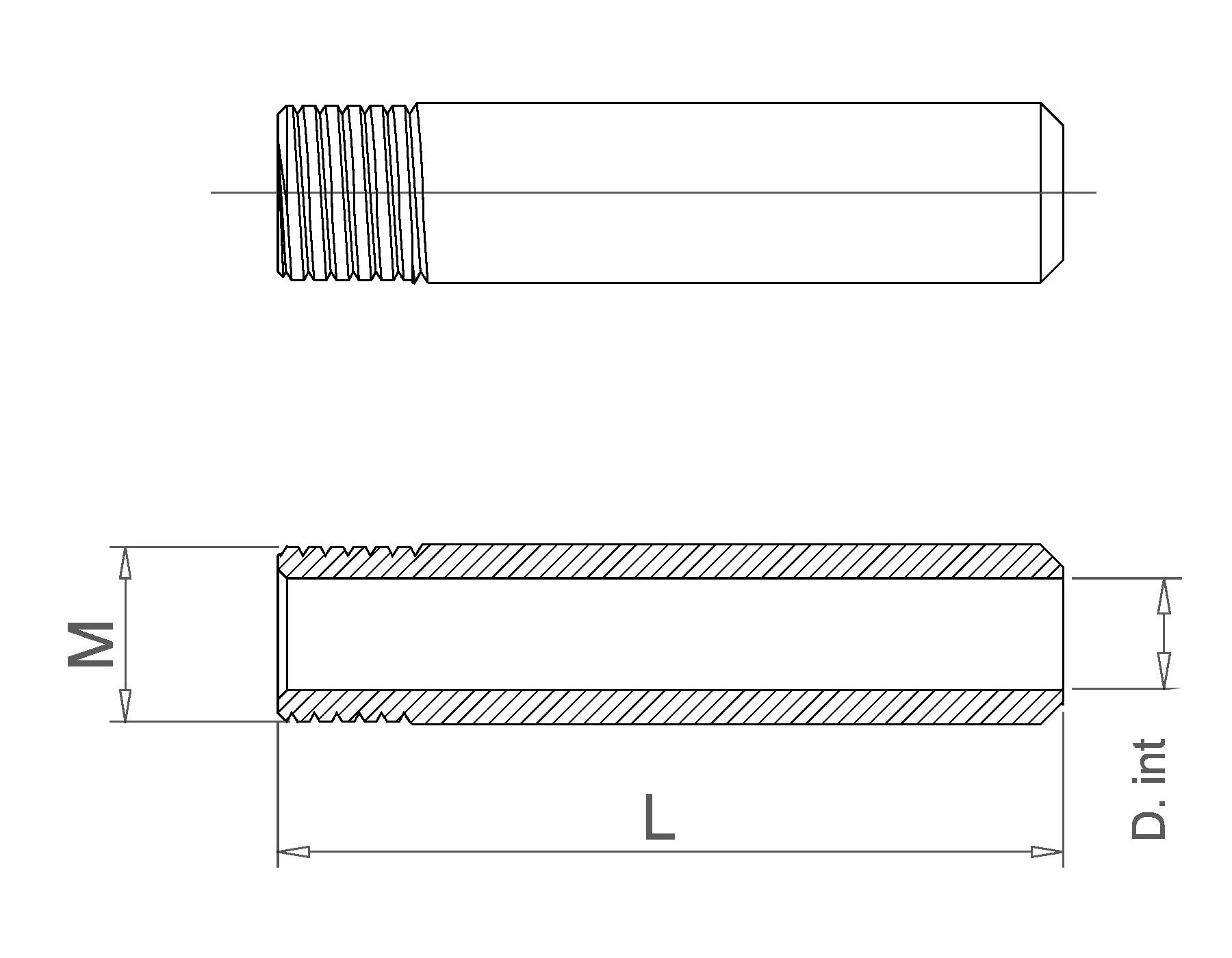

Available Sizes: 7308

Code. M D.int L Description
7308/3/1.5 3 mm 1.5 mm 25 mm Pack 10 extensions diam.3
7308/4/1 4 mm 1 mm 30 mm Pack 10 extensions diam.4
7308/4/2 4 mm 2 mm 30 mm Pack 10 extensions diam.4
7308/5/2 5 mm 2 mm 30 mm Pack 10 extensions diam.5
7308/5/3 5 mm 3 mm 40 mm Pack 10 extensions diam.5
7308/6/2 6 mm 2 mm 35 mm Pack 10 extensions diam.6
7308/6/3 6 mm 3 mm 35 mm Pack 10 extensions diam.6
7308/6/4 6 mm 4 mm 50 mm Pack 10 extensions diam.6
7308/8/2 8 mm 2 mm 40 mm Pack 10 extensions diam.8
7308/8/3 8 mm 3 mm 40 mm Pack 10 extensions diam.8
7308/8/4 8 mm 4 mm 40 mm Pack 10 extensions diam.8
7308/8/5 8 mm 5 mm 50 mm Pack 10 extensions diam.8
7308/10/2 10 mm 2 mm 40 mm Pack 10 extensions diam.10
7308/10/4 10 mm 4 mm 40 mm Pack 10 extensions diam.10
7308/10/6 10 mm 6 mm 50 mm Pack 10 extensions diam.10
7308/10/8 10 mm 8 mm 50 mm Pack 10 extensions diam.10

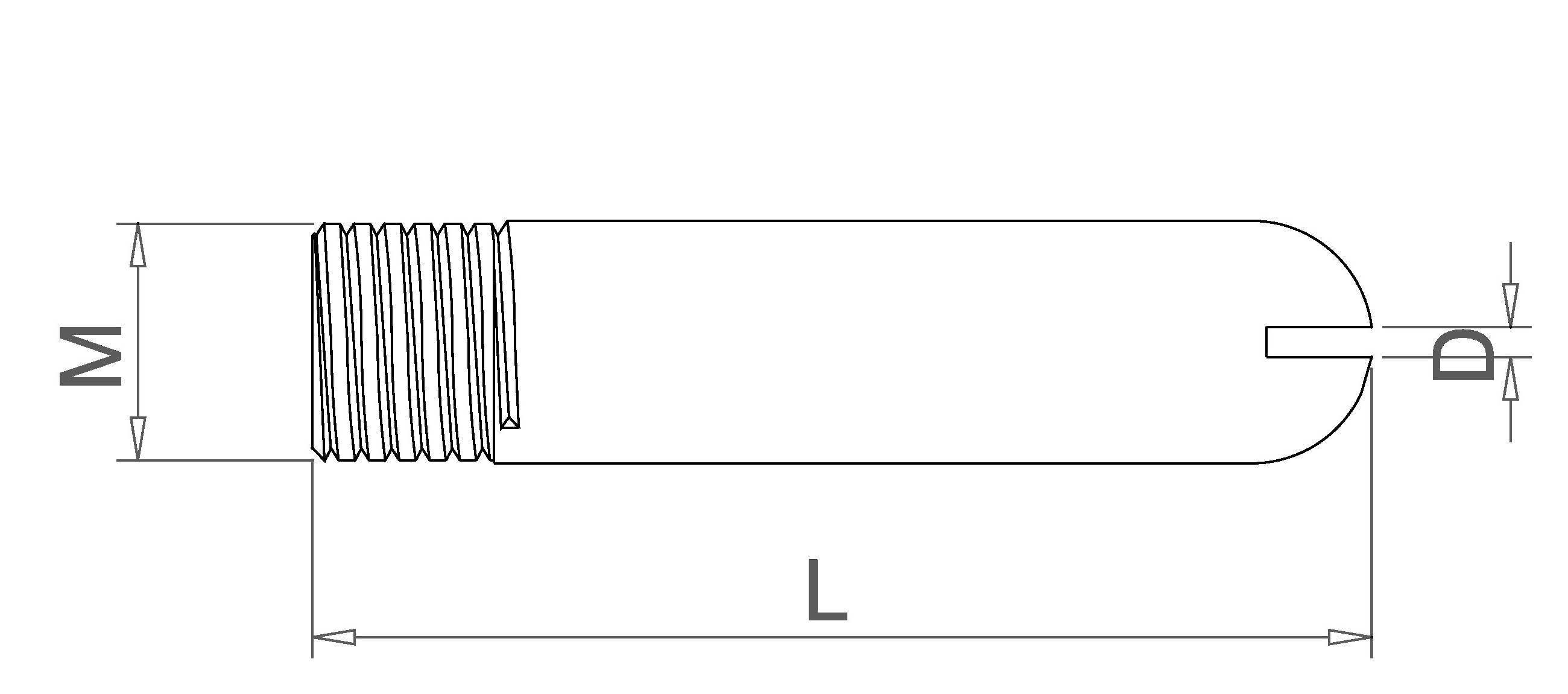

Available Sizes: 7309

Code. M D L Description
7309/8 8 mm 1 mm 35 mm Pack 10 flat extensions diam.8
7309/10 10 mm 1 mm 35 mm Pack 10 flat extensions diam.8

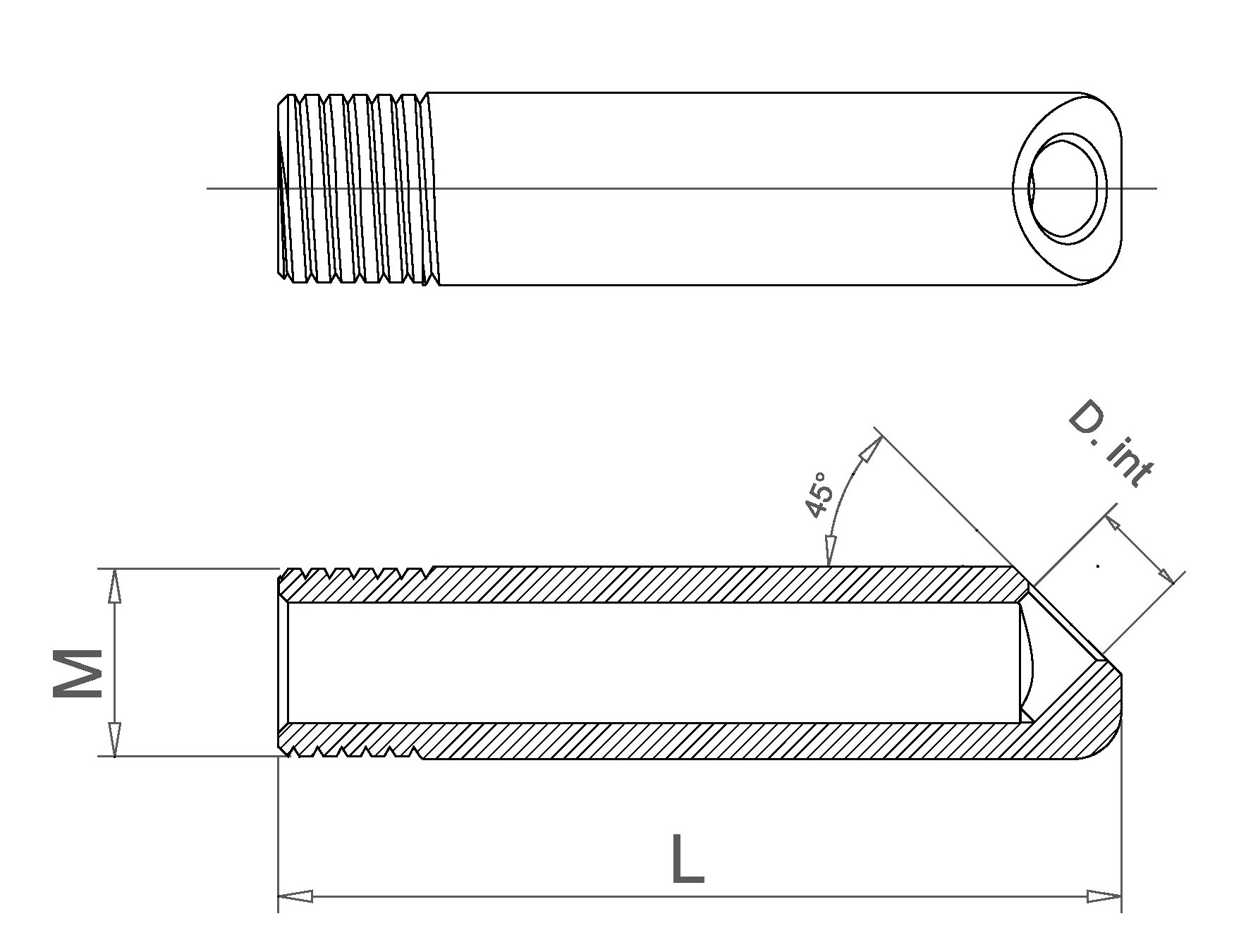

Available Sizes: 7310/45

Code. M D.int L Description
7310/45/5 5 mm 2.5 mm 25 mm Pack 10 45°extensions diam.5
7310/45/6 6 mm 3 mm 30 mm Pack 10 45°extensions diam.6
7310/45/8 8 mm 4 mm 35 mm Pack 10 45°extensions diam.8
