Speice Hight pressure Sphere Nozzles maximum orientability
High-precision coolant delivery for advanced CNC machining.
CODE: 7319
Technical Details
- Max Pressure: 80Bar
- Max Temperature: 150°C
- USE: With compressed air, Oil, water-oil emulsions.
- RIGIDITY: High even in the presence of chips
- ADJUSTMENT ANGLE: From 0° to + - 106°
Description
Speice 7319 In addition to resisting very high pressures (80 bar) with extremely high rigidity, it can be easily adjusted from 0° to + - 106°, solving any problems with coolant supply in very confined spaces. It can be used on all machine tools, marble processing machines, die casting machines, washing systems, etc.
Downloads
Available Sizes

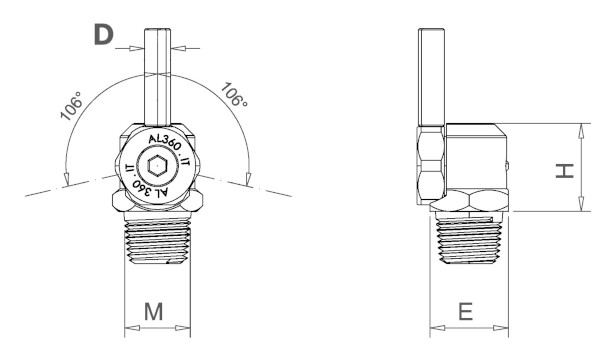

| Code. | D | E | M | H | Description |
|---|---|---|---|---|---|
| 7319/4 | M4 | 12 | 1/8 | 12 | Pack 10 nozzles Hight pressure |
| 7319/5 | M5 | 14 | 1/8 | 18 | Pack 10 nozzles Hight pressure |
| 7319/6 | M6 | 17 | 1/4 | 17 | Pack 10 nozzles Hight pressure |
